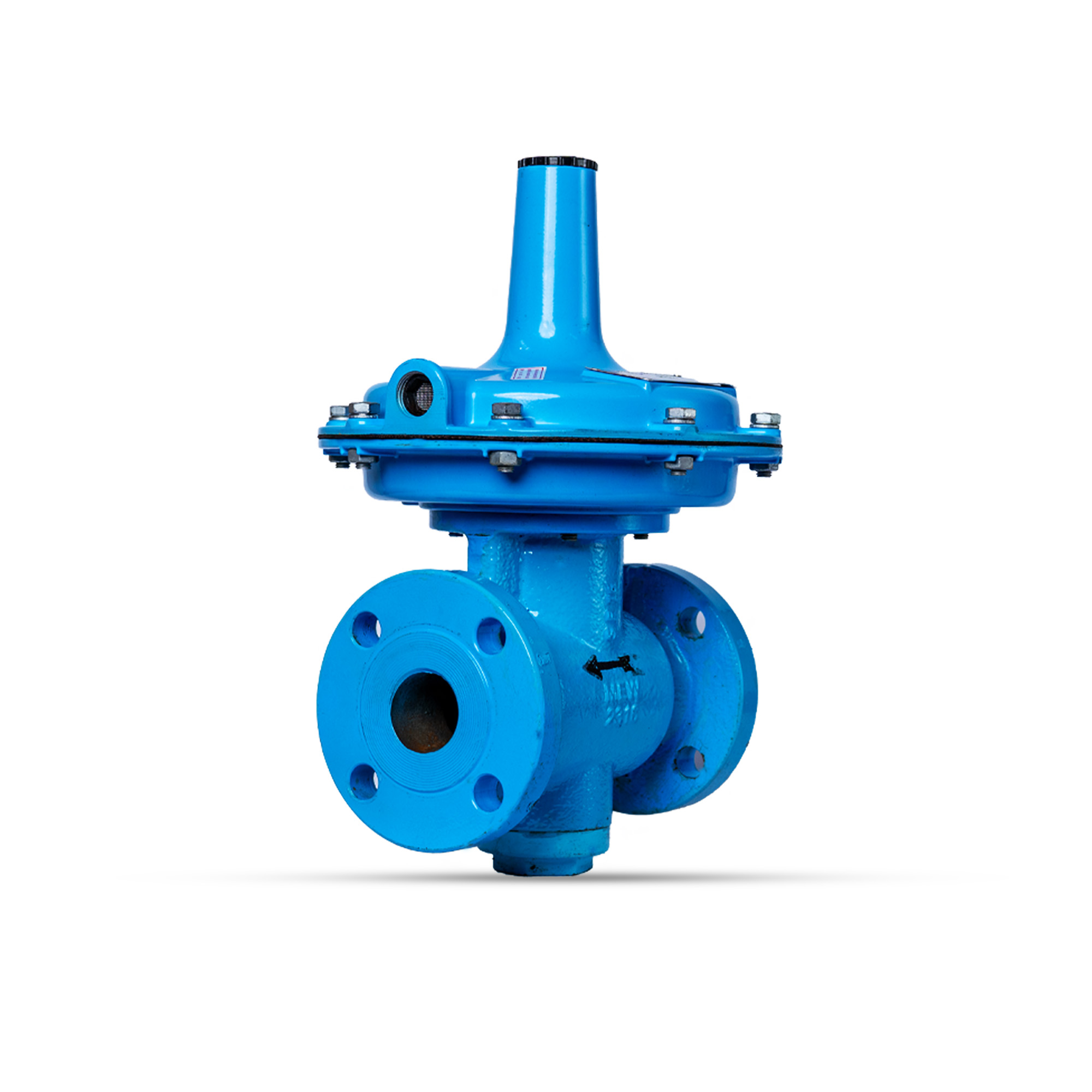

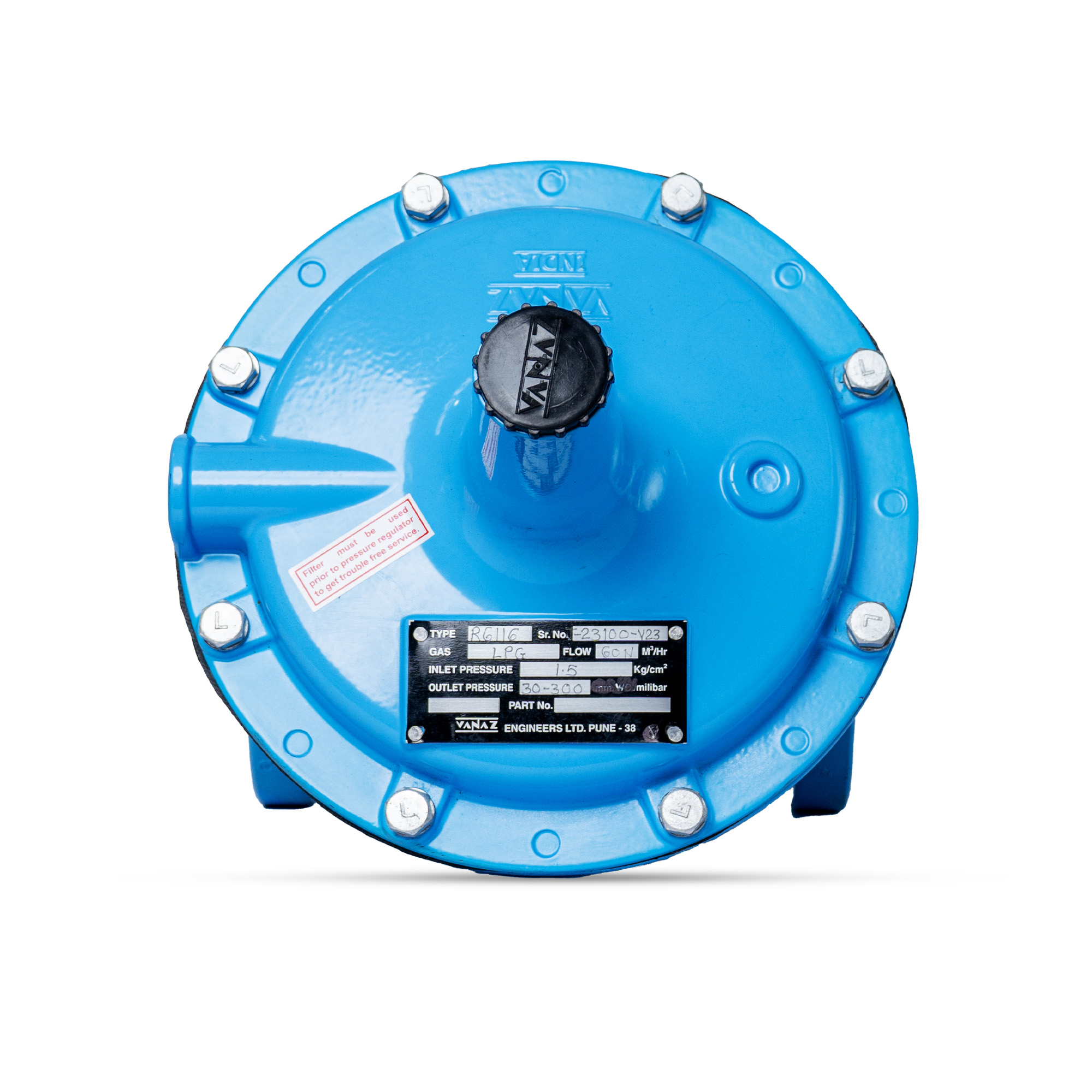

PRESET PRESSURE REDUCER OP 30 – 300 MBAR 1.5″ FLANGED END ANSI#150
- Second Stage Precision: Regulate low pressure, high flow rates with accuracy.
- Versatile Usage: Ideal for wider inlet pressure variations in various applications.
- Furnace Suitability: Suitable for small to medium-sized furnaces, ensuring precision control.
- Sensitive Performance: Highly sensitive regulators requiring proper filtration and first-stage regulation.
- Reliable Second Stage: Primarily used as second-stage pressure regulators for Automatic Burners.
- 40mm (1.5″) Flanged end ASA 150# Class /ANSI 150#
- Inlet Pressure Range 1.5 Bar
- Outlet Pressure Range 0.03 – 0.3 Bar (30 – 300 mbar)
- Flow Rate 0 – 60 Nm³/Hr
- Gas LPG, Natural Gas, Nitrogen And Air
