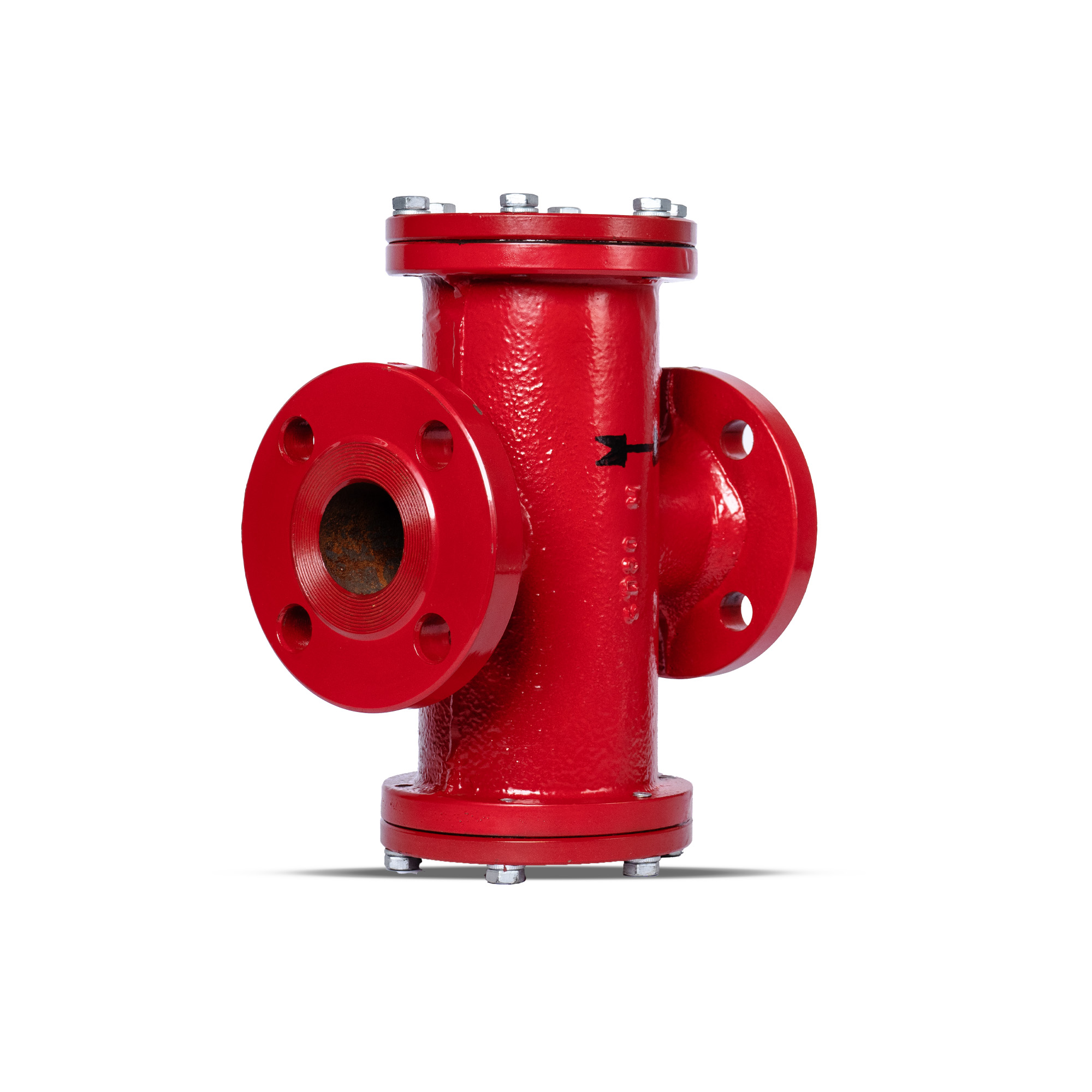

FILTER 1.5″ FLANGED END ANSI#300
The use of gas filters in LPG (Liquefied Petroleum Gas) and natural gas pressure reducing systems is crucial for maintaining the integrity and performance of the system.
- 40mm (1.5″) Flanged end ASA 300# Class /ANSI 300#
- Working Pressure 17 Bar
- Gas Flow Capacity 200 Nm³/Hr.
- Gas LPG, Natural Gas, Nitrogen And Air
- SGCI Body Brass Mesh 50 microns
- Contaminant Removal: Gas filters are installed upstream of regulators to remove contaminants such as dust, dirt, debris, and particulate matter from the gas stream.
- Regulator Protection: One of the primary purposes of gas filters is to protect the regulator. Contaminants in the gas stream can damage the regulator’s internal components, including the seat and rubber sealing pad which result in regulator malfunction and unreliable pressure control.
- Enhanced Regulator Performance: By ensuring that only clean and dust-free gas enters the regulator, gas filters help maintain the optimal performance of the regulator. A well-functioning regulator is essential for maintaining safe and consistent gas pressure downstream.
