LOW FLOW PRESET PRESSURE REDUCER OP 11″WC

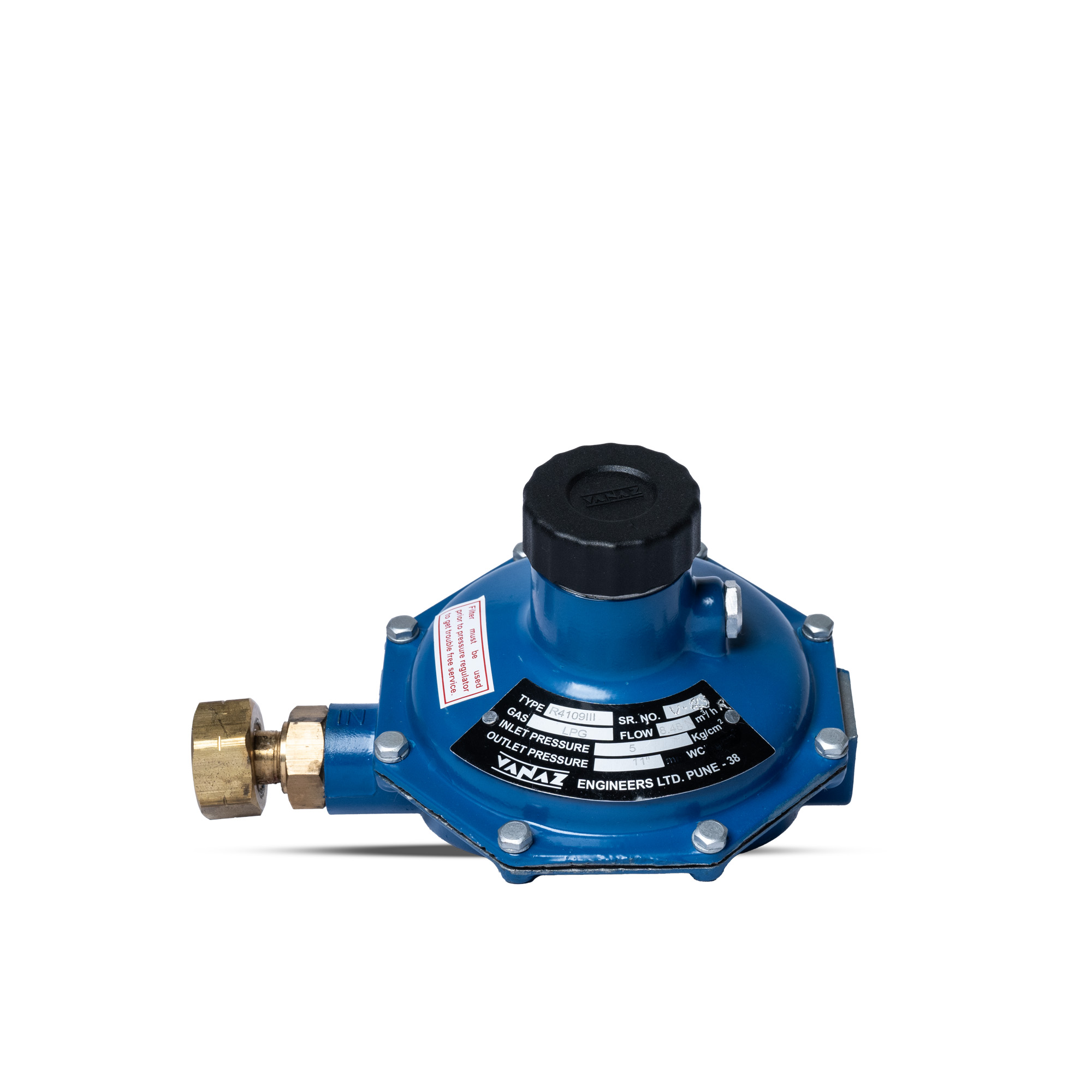

- Introducing the Industrial Pressure Regulator R – 4109 with 5 preset pressure options.
- Experience sensitive and accurate regulation at low downstream pressures.
- Discover precise pressure control with preset outlet pressure in these regulators.
- Fine-tune outlet pressure by rotating the spring adjusting screw for flexibility.
- The diaphragm-type construction ensures responsiveness up to an inlet pressure of 17 Bar.
- Ideal for canteens, restaurants, and small industrial furnaces.
- Achieve reliable pressure management for various applications.
- Inlet: 21.8 X 14 TPI (L.H) Female Union Nut
- Outlet: 15mm (½”) BSPF Threaded/Screwed End
- Inlet Pressure Range 0 – 5 Bar
- Outlet Pressure 11″” WC (30 mbar)
- Flow Rate 0 – 5 Nm³/Hr
- Gas LPG, Nitrogen, Natural Gas & Air
