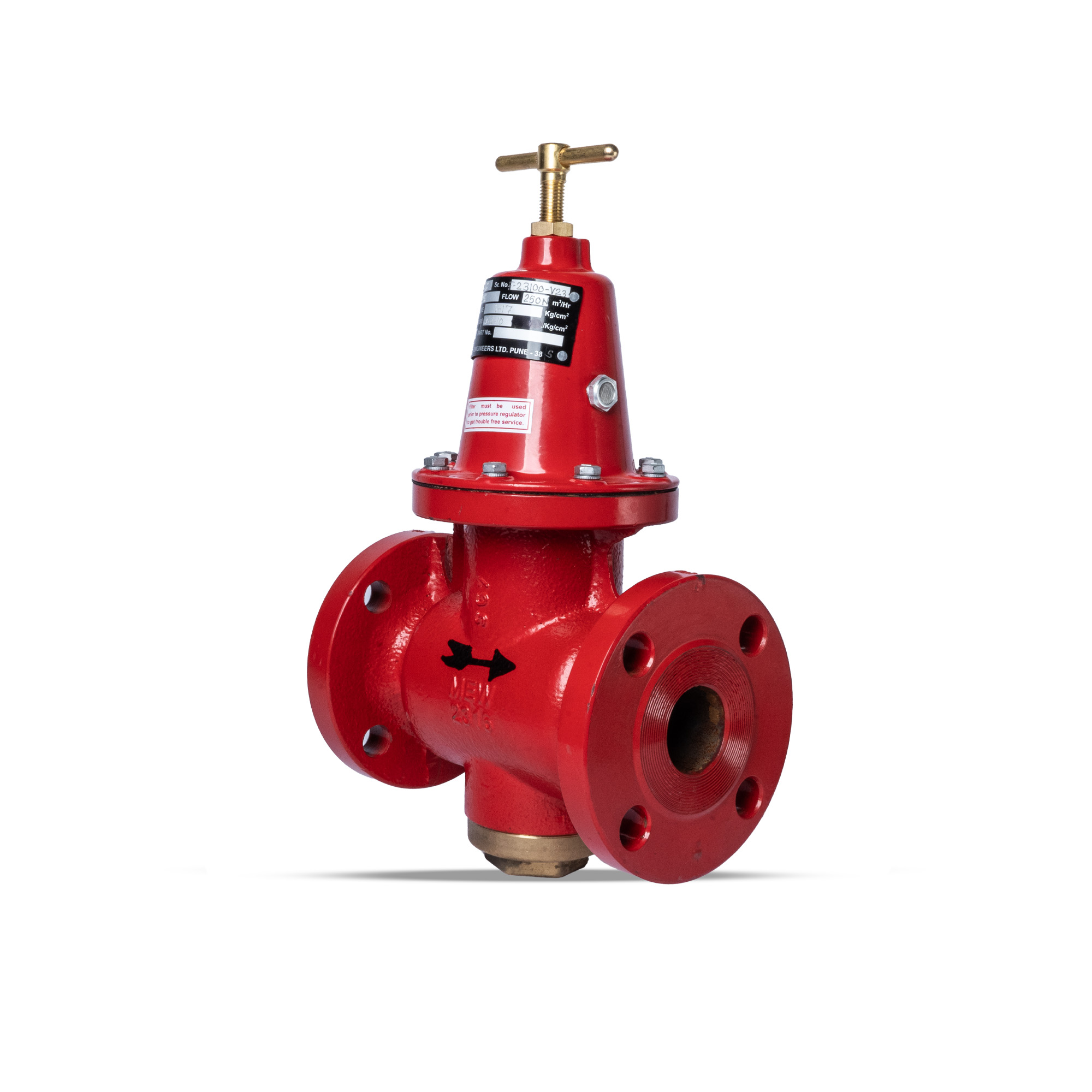

ADJUSTABLE PRESSURE REGULATOR LPG/NG GAS 1.5″ FLANGED END ANSI#150
- Regulators with Flanged end ANSI / ASA #300 class end connection for LPG / NG Gas system installations.
- Enhanced Pressure & Flow Range: Regulators with wider outlet pressure flexibility for a high flow rates requirement.
- Simple Adjustment: Knob on spring adjusting screw for easy outlet pressure tuning.
- Clockwise/Counterclockwise Control: Increase by clockwise, reduce by anticlockwise rotation.
- Primary Stage Regulation: Perfect for first-stage pressure control in LPG/Natural Gas systems.
- Outlet Pressure Range 0.5 – 10 Bar for flow rate of 0 – 250 Kg/Hr of LPG Gas.
- 40mm (1.5″) Flanged end ASA 150# Class /ANSI 150#
- Inlet Pressure Range 1 – 17 Bar
- Outlet Pressure Range 0.5 – 10 Bar
- Flow Rate 0 – 150 Nm³/Hr
- Gas LPG, Natural Gas, Nitrogen
- MOC CS Body Aluminium Bonnet Brass Trim Parts
